| 起源の場所: | 中国 |
| ブランド名: | SUMA |
| 証明: | ISO SGS |
| モデル番号: | YCR |
| 最小注文数量: | 10個 |
|---|---|
| 価格: | USD2.5-USD3.2 PER PIECE |
| パッケージの詳細: | カートンボックス /木製の箱 |
| 受渡し時間: | 2～5日 |
| 支払条件: | L/C,D/A,D/P,T/T,ウェスタンユニオン,Paypal |
| 供給の能力: | 1か月あたり100000個 |
| 製品名: | カムフォロアベアリング CYR | 材料: | ベアリングスチールGCR15 |
|---|---|---|---|
| 外の競争の表面: | 円筒形 | パッケージ: | ポリ袋+カートン箱のそれぞれ |
| 保証: | 6ヶ月 | ポート: | 上海/ニンポー |
| OEM: | 受け入れる | 受渡し時間: | 3～5日 |
| ハイライト: | stud type cam follower bearing,CYR2S needle roller bearing,cam follower bearing with stud |
||

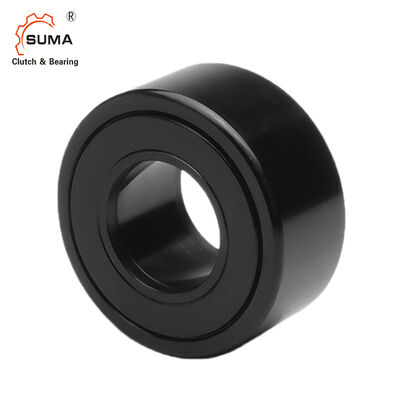

CYR2S CYR-2 S Needle Roller Bearing Cam Follower Bearings
Features
Track Roller is a bearing unit composed of machined thick-wall outer ring, needle rollers or cylindrical roller sets, or cage guidance or full complement needle roller, inner ring or bolt and seal. Featuring multiple compact structure, high rotating accuracy, large varieties, broad adaptability and easy installation, it can bear high radial load and certain shock load and is widely used in machine tool, metallurgical, textile and printing machinery, processing lines and etc.
Dimensions and Capacities
|
No seals Ref No. |
Sealed Ref No. |
Sealed Ref No. |
OD (RD) Inch |
Width (W) Inch |
ID (B) Inch |
Width over end plates (W1) Inch |
Dia. Of end plate (E) Inch |
| CYR-3/4 | CYR-3/4-S | CCYR-3/4-S | 0.75 | 0.5 | 0.25 | 0.5625 | 39/64 |
| CYR-7/8 | CYR-7/8-S | CCYR-7/8-S | 0.875 | 0.5 | 0.25 | 0.5625 | 39/64 |
| CYR-1 | CYR-1-S | CCYR-1-S | 1 | 0.625 | 0.3125 | 0.6875 | 25/32 |
| CYR-1 1/8 | CYR-1 1/8-S | CCYR-1 1/8-S | 1.125 | 0.625 | 0.3125 | 0.6875 | 25/32 |
| CYR-1 1/4 | CYR-1 1/4-S | CCYR-1 1/4-S | 1.25 | 0.75 | 0.375 | 0.8125 | 63/64 |
| CYR-1 3/8 | CYR-1 3/8-S | CCYR-1 3/8-S | 1.375 | 0.75 | 0.375 | 0.8125 | 63/64 |
| CYR-1 1/2 | CYR-1 1/2-S | CCYR-1 1/2-S | 1.5 | 0.875 | 0.4375 | 0.9375 | 1 3/32 |
| CYR-1 5/8 | CYR-1 5/8-S | CCYR-1 5/8-S | 1.625 | 0.875 | 0.4375 | 0.9375 | 1 3/32 |
| CYR-1 3/4 | CYR-1 3/4-S | CCYR-1 3/4-S | 1.75 | 1 | 0.5 | 1.0625 | 1 1/4 |
| CYR-1 7/8 | CYR-1 7/8-S | CCYR-1 7/8-S | 1.875 | 1 | 0.5 | 1.0625 | 1 1/4 |
| CYR-2 | CYR-2-S | CCYR-2-S | 2 | 1.25 | 0.625 | 1.3125 | 1 13/32 |
| CYR-2 1/4 | CYR-2 1/4-S | CCYR-2 1/4-S | 2.25 | 1.25 | 0.625 | 1.3125 | 1 13/32 |
| CYR-2 1/2 | CYR-2 1/2-S | CCYR-2 1/2-S | 2.5 | 1.5 | 0.75 | 1.5625 | 1 11/16 |
| CYR-2 3/4 | CYR-2 3/4-S | CCYR-2 3/4-S | 2.75 | 1.5 | 0.75 | 1.5625 | 1 11/16 |
| CYR-3 | CYR-3-S | CCYR-3-S | 3 | 1.75 | 1 | 1.8125 | 2 1/8 |
| CYR-3 1/4 | CYR-3 1/4-S | CCYR-3 1/4-S | 3.25 | 1.75 | 1 | 1.8125 | 2 1/8 |
| CYR-3 1/2 | CYR-3 1/2-S | CCYR-3 1/2-S | 3.5 | 2 | 1.125 | 2.0625 | 2 7/16 |
| CYR-4 | CYR-4-S | CCYR-4-S | 4 | 2.25 | 1.25 | 2.3125 | 2 51/64 |
| CYR-5-S | CCYR-5-S | 5 | 2.75 | 1.75 | 2.875 | 3 9/16 | |
| CYR-6-S | CCYR-6-S | 6 | 3.25 | 2.25 | 3.375 | 4 15/32 | |
| CYR-7-S | CCYR-7-S | 7 | 3.75 | 2.75 | 3.875 | 5 3/16 | |
| CYR-8-S | CCYR-8-S | 8 | 4.25 | 3.255 | 4.5 | 4 3/8 | |
| CYR-9-S | CCYR-9-S | 9 | 4.75 | 3.755 | 5 | 5 1/16 | |
| CYR-10-S | CCYR-10-S | 10 | 5.25 | 4.255 | 5.5 | 5 15/32 |
