| 精度定格: | P0 | 密封器の種類: | 密閉 |
|---|---|---|---|
| ベアリングタイプ: | スプラグ | 材料: | GCR15 |
| 定数トルク: | 325Nm | 最大速度: | 15000 min-1 |
| ボアサイズ: | 40までのmm | 動的負荷: | 15.54kN |
| 静的負荷: | 12.25kN | 重さ: | 0.5 kg |
| 引力 トルク: | 7Ncm | 内径: | 8-40 Mm |
| 外径: | 22-80 Mm | 長さ: | 9-27 Mm |
| ベアリングシリーズ: | 6201-6207 | ||
| ハイライト: | CSK356217 One Way Clutch Bearing,CSK356218 Sprag Clutch Bearing,Precision Rating P0 Freewheel Clutch Bearing |
||

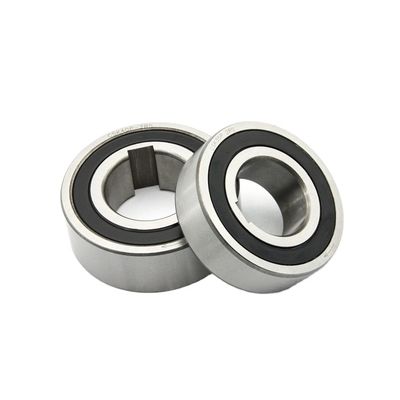

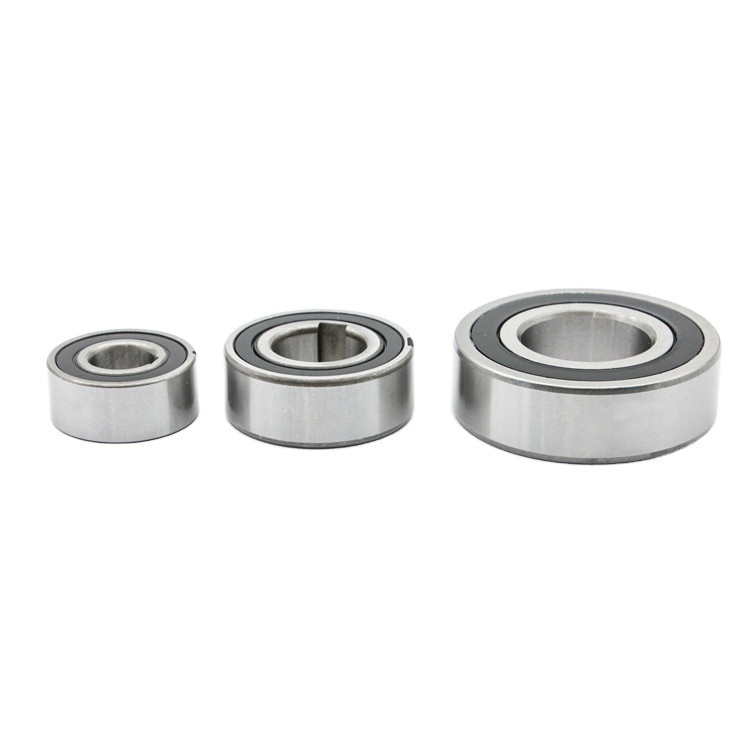

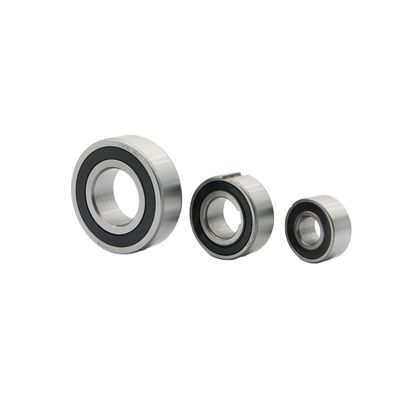

CSK series one way freewheels are sprag freewheels with bearing support and ball bearing properties. The freewheels are supplied grease-filled for normal operating conditions.
The freewheel is built into the customer housing, enabling compact, space-saving fitting solutions.
Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection. Bores up to 40 mm.
| Type | Size | Bearing series | TKN1 | N max | D | L | C | C0 | Weight | TR |
|---|---|---|---|---|---|---|---|---|---|---|
| CSK (KK) | 8* | - | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.5 |
Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet
Small items: In stock.
Medium Items: 10-15 Days
Big items: 20-25 Days
