| 精度定格: | P0 | 密封器の種類: | 開ける |
|---|---|---|---|
| タイプ: | スプラグ | スプラグ素材: | GCR15 |
| 厚さ: | 10mm | スプラグ量: | 12個 |
| トルク容量: | 63Nm | 外径: | 74.42 |
| ボアサイズ: | 57.76 | 重さ: | 0.03kg |
| オーバーランニング速度（外側）: | 750 | オーバーランニング速度（内側）: | 1500 |
| 表面の硬度: | HRC 60〜62 | コア硬度: | HRC35-45 |
| 表面の粗さ: | 22cla | ||

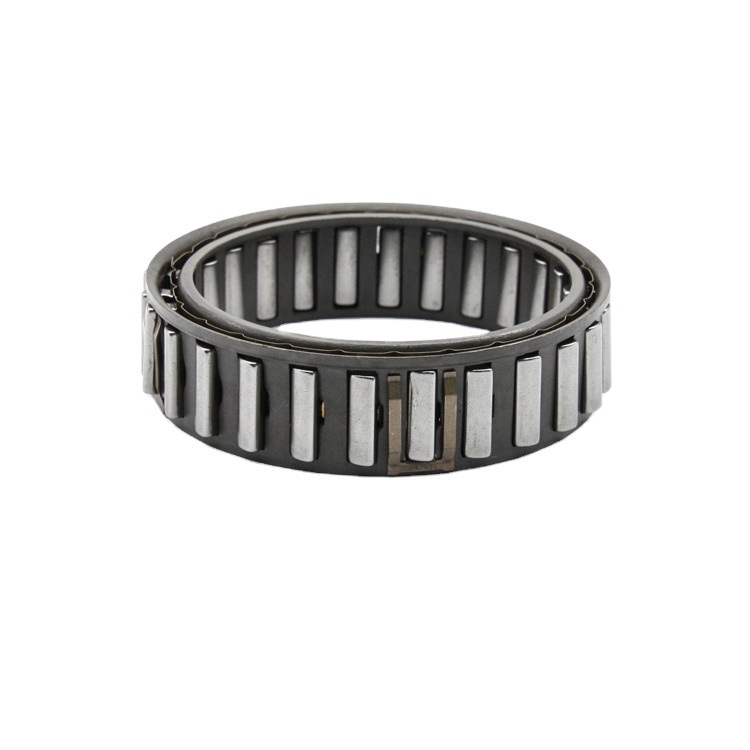

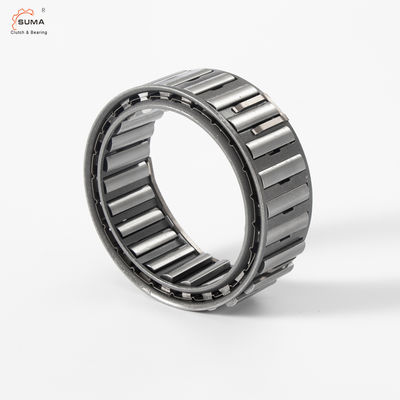

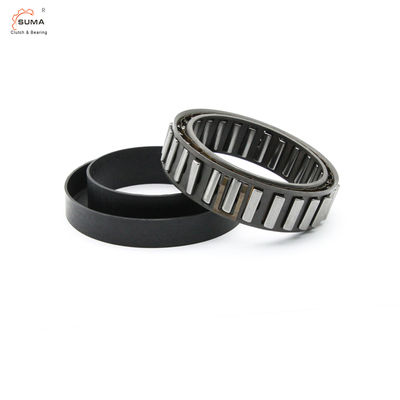

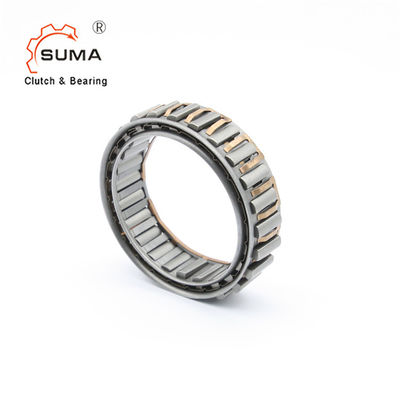

| ハイライト: | P0 Precision Sprag Overrunning Clutch,Gcr15 Sprag Material One Way Bearing,10mm Thickness Sprag Clutch |
||
| Item | DC5776-N |
|---|---|
| Outer Diameter | 74.42 |
| Bore Size | 57.76 |
| Nominal Torque | 63 |
| Weight | 0.03kg |
| Sprags Quantity | 12 |
| Overrunning Speed (outer race) | 750 |
| Overrunning Speed (inner race) | 1500 |
| Port | Shanghai; Ningbo |
| Delivery Time | 1-2 Days |
| Type | Drag Torque (NM) | Size (mm) | Number of Clips |
|---|---|---|---|
| DC2222G | 50 | 22.225 | |
| DC2776 | 95 | 27.762 | |
| DC3034 | 99 | 30.34 | |
| DC3175(3C) | 127 | 31.75 | 3 |
| DC3809A | 220 | 38.092 | |
| DC4127(3C) | 179 | 41.275 | 3 |
| DC4445A | 290 | 44.45 | |
| DC4972(4C) | 245 | 49.721 | 4 |
| DC5476A | 420 | 54.765 | |
| DC5476A(4C) | 420 | 54.765 | 4 |
| DC5476B(4C) | 615 | 54.765 | 4 |
| DC5476C(4C) | 792 | 54.765 | 4 |
| DC5776A | 483 | 57.76 | |
| DC6334B | 645 | 63.34 | |
| DC7221(5C) | 540 | 72.217 | 5 |
| DC7221B | 1023 | 72.217 | |
| DC7221B(5C) | 1023 | 72.217 | 5 |
| DC7969C(5C) | 1630 | 79.698 | 5 |
| DC8334C | 1645 | 83.34 | |
| DC8729A | 1000 | 87.29 | |
| DC10323A(3C) * | 1290 | 103.231 ** | 3 |
| DC12334C * | 3840 | 123.34 ** | |
| DC12388C(11C) | 3900 | 123.881 | 11 |
Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet
Small items: In stock.
Medium Items: 10-15 Days
Big items: 20-25 Days
