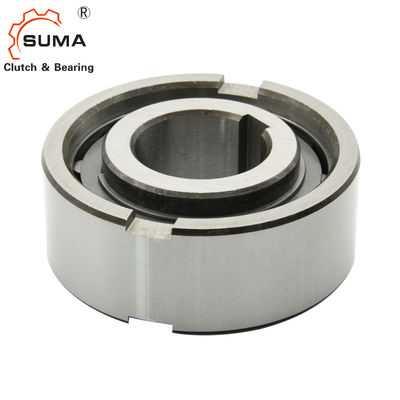

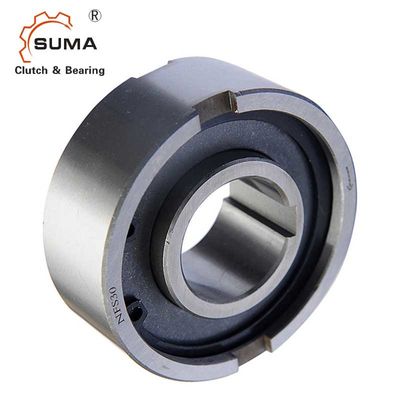

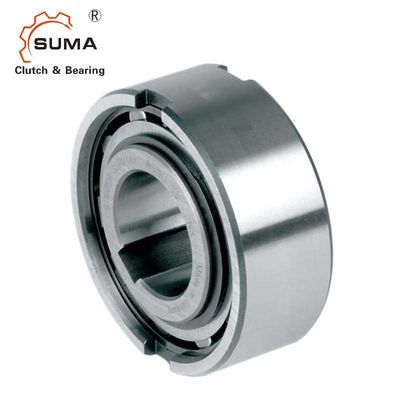

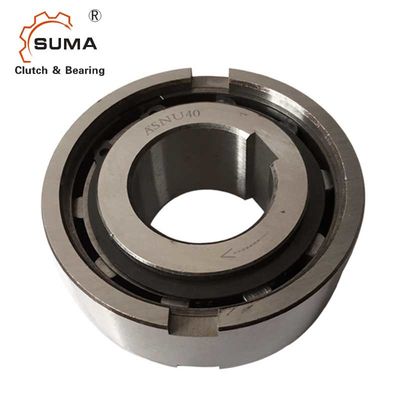

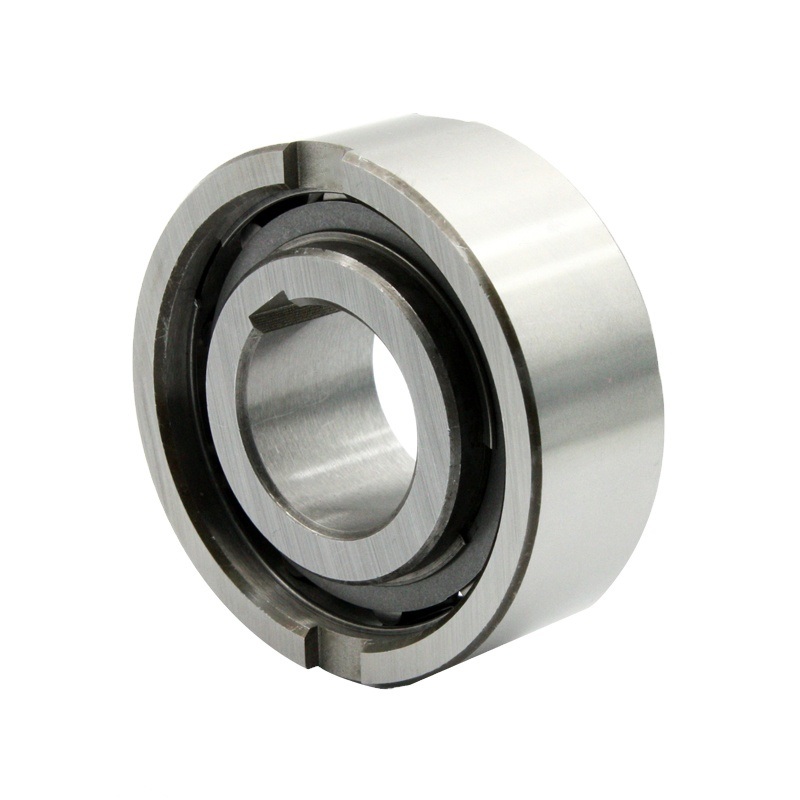

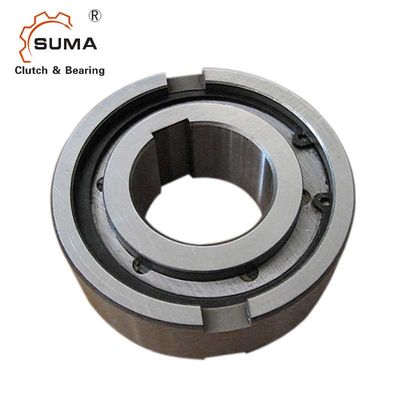

Name: ASNU50 ASNU 50 TFS50 One Way Clutch Bearing with 40mm Bore 538Nm Torque and P0 Precision for Industrial Applications
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: ASNU50
Price: 21.00 USD
Availability: InStock

ホーム製品 1つの方法クラッチ軸受け

ASNU50 ASNU 50 TFS50 One Way Clutch Bearing with 40mm Bore 538Nm Torque and P0 Precision for Industrial Applications

商品の詳細:

起源の場所:	江蘇
ブランド名:	SUMA or OEM
モデル番号:	ASNU50

お支払配送条件:

最小注文数量:	2
価格:	$18-24

連絡先

詳細製品概要

ボアサイズ:	40 - 40.001 mm	行数:	単一行
精度定格:	P0	重さ:	0.92kg
材料:	GCR15	トルク:	538nm
密封器の種類:	シール	超行速度:	1100～1700min-1
引力トルク:	38 ncm	外径:	90 mm
内径:	78のmm	長さ:	33 mm
幅:	12 mm	キーウェイ幅:	4.1 mm
キーウェイの深さ:	2.5 mm
ハイライト:	40mm Bore One Way Clutch Bearing , 538Nm Torque Freewheel Clutch , P0 Precision Overrunning Clutch

ASNU50 ASNU 50 TFS50 One Way Clutch Bearings Freewheel Overrunning Clutch

Product Overview

Key Features

Roller type freewheel nonbearing supported design
Requires separate bearings for axial and radial load support
Requires external lubrication and sealing
Nominal outer diameter matches series 63 ball bearings
Inner race keyed to shaft for secure mounting
Outer race features n6 tolerance for press fit in H7 housing
Side notches on outer race enable positive torque transmission
Tolerates axial misalignment of ± S/2 between inner and outer races

Technical Specifications

Type	Size [mm]	TKN [Nm]	nimax [min-1]	namax [min-1]	Dn6 [mm]	D5 [mm]	L [mm]	b [mm]	t [mm]	s [mm]	e [mm]	f [mm]	Weight [kg]	Drag Torque [Ncm]
ASNU	8	12	3300	5000	35	28	13	4	1.4	2.4	0.6	0.3	0.07	1.6
ASNU	12	12	3300	5000	35	28	13	4	1.4	2.4	0.6	0.3	0.06	1.6
ASNU	15	30	2400	3600	42	37	18	5	1.8	2.4	0.8	0.3	0.11	1.9
ASNU	17	49	2300	3400	47	40	19	5	2.3	2.4	1.2	0.8	0.15	1.9
ASNU	20	78	2100	3100	52	42	21	6	2.3	2.4	1.2	0.8	0.19	1.9
ASNU	25	125	1700	2600	62	51	24	8	2.8	2.4	1.2	0.8	0.38	5.6
ASNU	30	255	1400	2200	72	60	27	10	2.5	2.4	1.8	1	0.54	14
ASNU	35	383	1200	1900	80	70	31	12	3.5	2.4	1.8	1	0.74	16
ASNU	40	538	1100	1700	90	78	33	12	4.1	2.5	1.8	1	0.92	38
ASNU	45	780	1000	1600	100	85	36	14	4.6	2.5	1.8	1	1.31	43
ASNU	50	1013	850	1350	110	92	40	14	5.6	2.5	1.8	1	1.74	55
ASNU	60	1825	750	1050	130	110	46	18	5.5	3.6	2.6	1.5	2.77	110
ASNU	70	2300	600	950	150	125	51	20	6.9	3.6	2.6	1.5	4.16	140
ASNU	80	3275	550	850	170	140	58	20	7.5	3.6	2.6	1.5	6.09	180
ASNU	90	5325	500	750	190	160	64	20	8	3.6	2.6	2	8.2	230
ASNU	100	7250	450	680	215	175	73	24	8.5	3.6	2.6	2	12.6	380
ASNU	120	13500	370	550	260	215	86	28	10	3.6	2.6	2.5	22	650
ASNU	150	26625	300	460	320	260	108	32	12	3.6	3.6	2.5	42	1000
ASNU	200	44500	230	350	420	350	138	45	16	7.6	3.6	3	93	2000

Mounting Example

Detailed Images

Packaging & Shipping

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd is a specialized manufacturer of various one way bearings, one way clutches, backstop clutches, overrunning clutches, needle roller bearings and other high-technology bearings.
