| 精度定格: | P0 | 密封器の種類: | 密閉 |
|---|---|---|---|
| タイプ: | カム | トルク容量: | 2450Nm |
| 最大オーバーランニング速度: | 300 R/min | 幅: | 90 mm |
| 引力 トルク: | 5.88 n*m | 内なる 人種: | 90 mm |
| 外の競争: | 170 mm | PCD直径: | 150 mm |
| ボルト孔のサイズ: | M10×P1.5×6 | 重さ: | 13.1 KG |
| 直径の範囲: | 100〜160 mm | グリースフィラーの穴: | PT 1/4 |
| 数量グリース: | 0.12kg | ||

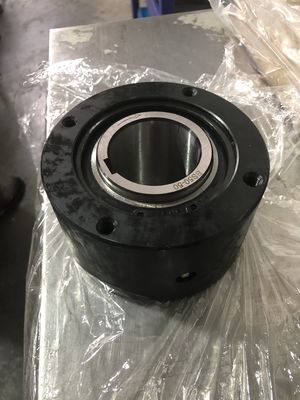

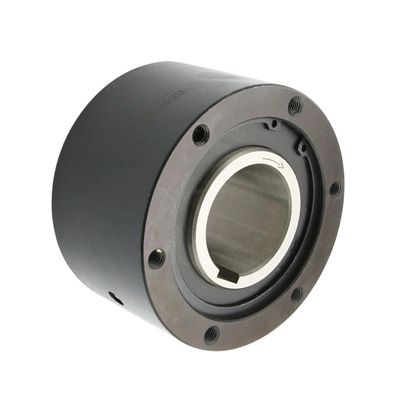

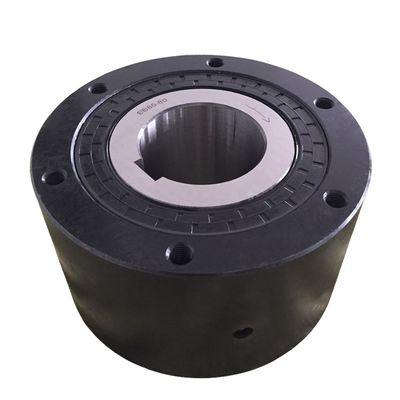

| ハイライト: | One Way Clutch Bearing 2450Nm Torque,90mm Width Clutch Bearing,BS75 One Way Clutch Bearing |
||
| Model | Torque Capacity (N*m) | Max. Overrunning (r/min) | Drag Torque (N*m) | A | B | C | PCD D | E | S | H-M Size×Pitch×No. of Tapped Holes | Grease Filler Hole (Size) | Q'ty Grease (kg) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BS30 | 294 | 350 | 0.58 | 64 | 90 | 64 | 80 | 45 | 13 | M6×P1.0×4 | - | - | 21 |
| BS50 | 784 | 300 | 0.98 | 67 | 125 | 67 | 110 | 70 | 16 | M8×P1.25×4 | - | - | 4.0 |
| BS65 | 1570 | 340 | 3.92 | 90 | 160 | 85 | 140 | 90 | 20 | M10×P1.5×6 | - | - | 11.5 |
| BS75 | 2450 | 300 | 5.88 | 90 | 170 | 85 | 150 | 100 | 20 | M10×P1.5×6 | - | - | 13.1 |
| BS85 | 5880 | 300 | 7.84 | 115 | 210 | 110 | 185 | 115 | 30 | M12×P1.75×6 | - | - | 24.7 |
| BS95 | 7840 | 250 | 9.8 | 115 | 230 | 110 | 200 | 130 | 30 | M14×P2.0×6 | - | - | 29.4 |
| BS110 | 10800 | 250 | 14.7 | 115 | 270 | 110 | 220 | 150 | 30 | M16×P2.0×6 | - | - | 34.2 |
| BS135 | 15700 | 200 | 19.6 | 135 | 320 | 130 | 280 | 180 | 30 | M16×P2.0×8 | - | - | 68 |
| Model | Torque Capacity (N*m) | Max. Overrunning (r/min) | Drag Torque (N*m) | A | B | C | PCD D | E | S | H-M Size×Pitch×No. of Tapped Holes | Grease Filler Hole (Size) | Q'ty Grease (kg) | Bore Diameter Range (mm) | W. Max kg | W. Min kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BS160 | 24,500 | 100 | 33.1 | 130 | 360 | 130 | 315 | 220 | 40 | M20×P2.5×10 | PT 1/4 | 0.12 | 100-160 | 98.1 | 85.6 |
| BS200 | 37,200 | 100 | 44.1 | 150 | 430 | 145 | 380 | 265 | 40 | M22×P2.5×8 | PT 1/4 | 0.14 | 100-200 | 167 | 140 |
| BS220 | 49,000 | 80 | 73.5 | 235 | 500 | 230 | 420 | 290 | 40 | M20×P2.5×16 | PT 1/4 | 0.8 | 150-220 | 301 | 264 |
| BS250 | 88,200 | 50 | 93.1 | 295 | 600 | 290 | 530 | 330 | 50 | M24×P3.0×16 | PT 1/4 | 1.1 | 175-250 | 580 | 523 |
| BS270 | 123,000 | 50 | 98 | 295 | 650 | 290 | 575 | 370 | 50 | M24×P3.0×16 | PT 1/4 | 1.2 | 200-270 | 620 | 562 |
| BS300 | 176,000 | 50 | 108 | 295 | 780 | 290 | 690 | 470 | 60 | M30×P3.5×16 | PT 1/4 | 1.3 | 230-300 | 952 | 885 |
| BS335 | 265,000 | 50 | 137 | 305 | 850 | 320 | 750 | 495 | 70 | M36×P4.0×16 | PT 1/4 | 1.4 | 250-335 | 1,140 | 1,040 |
| BS350 | 314,000 | 50 | 157 | 320 | 930 | 360 | 815 | 535 | 70 | M36×P4.0×16 | PT 1/4 | 1.5 | 250-350 | 1,600 | 1,470 |
| BS425 | 510,000 | 50 | 216 | 440 | 1,030 | 450 | 940 | 635 | 70 | M36×P4.0×18 | - | Oil 6,000ml | 325-425 | 2,450 | 2,240 |
| BS450 | 686,000 | 50 | 245 | 450 | 1,090 | 480 | 990 | 645 | 80 | M42×P4.5×18 | - | Oil 7,000ml | 350-450 | 2,820 | 2,580 |
