| 内部レース速度: | 1600-3000 min-1 | アウターレーススピード: | 450-900 min-1 |
|---|---|---|---|
| トルク容量: | 379-6900 nm | 重量範囲: | 1.6-19 kg |
| 潤滑タイプ: | グリース | 直径のボア: | 15-5x5〜175-45x25 mm |
| 高さa: | 63.5-168.3 mm | 高さb: | 76.2-381 mm |
| 高さc: | 60.45-165.1 mm | 寸法e: | 1.6-3.2 mm |
| 寸法f: | 28.58-228.6 mm | 寸法g: | 66.67-298.45 mm |
| 寸法k: | 13-32 mm | 寸法f: | 0.8-3.2mm |
| 引力 トルク: | 18-156 NCM | ||

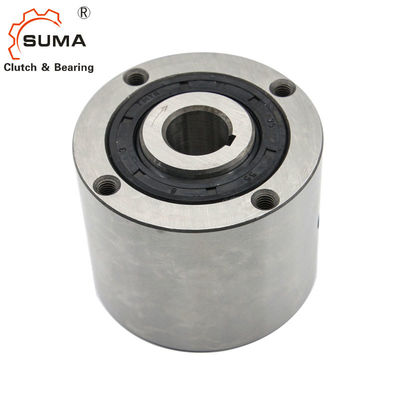

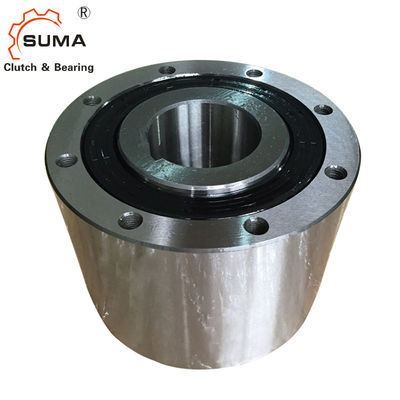

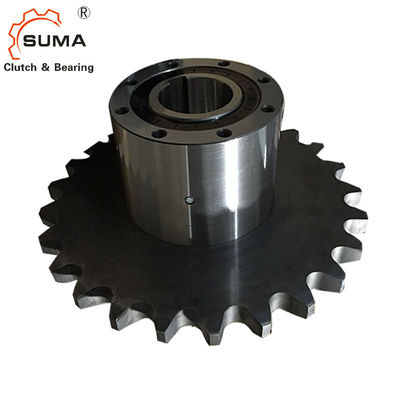

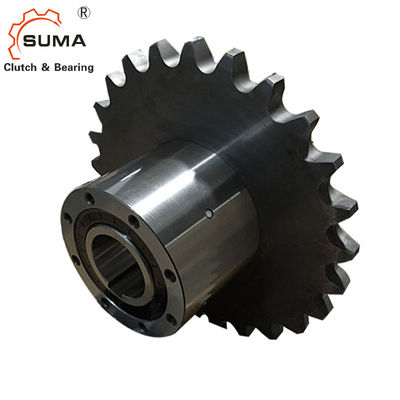

| ハイライト: | FSO300-700 one way clutch bearing,backstop cam clutch 379-6900 Nm torque,one way bearing with high torque |
||

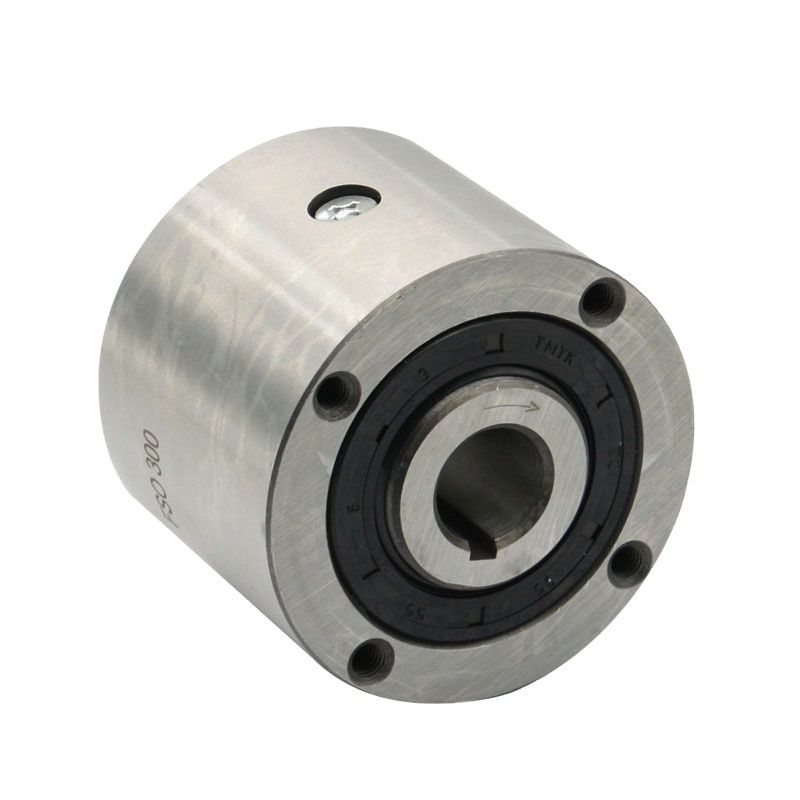

The FSO, FS, and HPI 750 to 1027 series are sprag type freewheels that are self-contained, sealed, and bearing supported, using two ball bearings. Units are delivered oil or grease lubricated according to type.
Based on Formsprag USA design, these units feature tall sprags with multi-radius active surfaces, specially engineered for large size freewheels to compensate for any eccentricity due to bearing wear.
| Type | Size | Overrunning Speeds | Weight | Torque Drag |
|---|---|---|---|---|

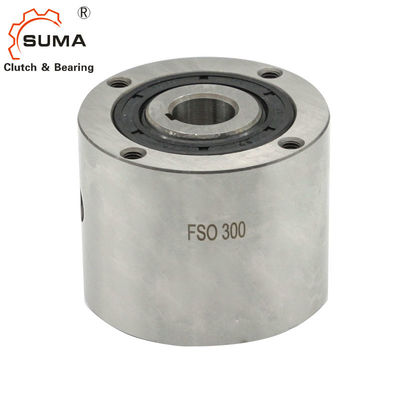

| FSO | 300 | 3000/900 | 18 kg | 1.6 Ncm |
| FSO-GR | 400 | 2800/850 | 27 kg | 2.7 Ncm |
| HPI | 500 | 2500/800 | 31 kg | 4.8 Ncm |
| 600 | 2200/750 | 62 kg | 8.6 Ncm | |
| 700 | 1600/450 | 156 kg | 19 Ncm |
| Type | Torque Capacity | Overrunning Speed | Weight | Drag Torque |
|---|---|---|---|---|
| 750 | 9660 Nm | 1800/650 | 38 kg | 5.08 Ncm |
| 800 | 17940 Nm | 1500/525 | 46 kg | 7.12 Ncm |
| 900 | 24408 Nm | 1350/500 | 71 kg | 8.47 Ncm |
| 1027 | 36612 Nm | 700/375 | 113 kg | 13.56 Ncm |
