| 精度定格: | P0、P6 | 密封器の種類: | 密閉 |
|---|---|---|---|
| 材料: | GCR15 | ボアサイズ: | 90mm |
| 幅: | 158mm | トルク容量: | 14500nm |
| 重さ: | 47.2kg | 外径: | 230mm |
| 超行速度: | 450 min-1 | 精密率: | p6 |
| タイプ: | GFRシリーズ | ベアリングサポート: | 160シリーズベアリング |
| 潤滑要件: | オイルは油を差した | ボルトのクリアランスを停止します: | ボルト径の13％ |
| キーウェイ標準: | DIN 6885.1 | ||
| ハイライト: | 90mm one way roller bearing,one way clutch bearing 14500Nm torque,GFR90 roller bearing with warranty |
||
| Item | GFR90F2F3 F3F4 |
|---|---|
| Material | GCr5 |
| Outer diameter | 230 mm |
| Bore size | 90 mm |
| Width | 158 mm |
| Torque | 14500 Nm |
| Weight | 47.2 kg |
| Overrunning speed | 450 min-1 |
| Precision rate | P6 |
| Port | Shanghai; Ningbo |
| Delivery time | 7-10 days |

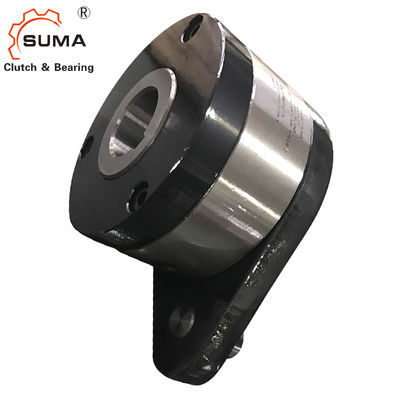

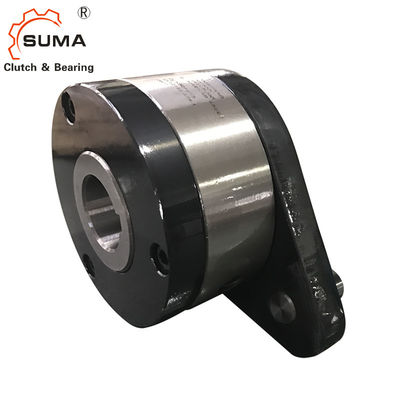

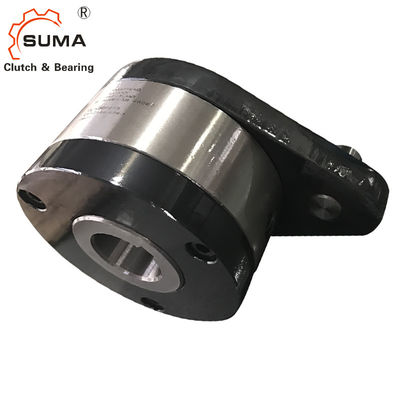

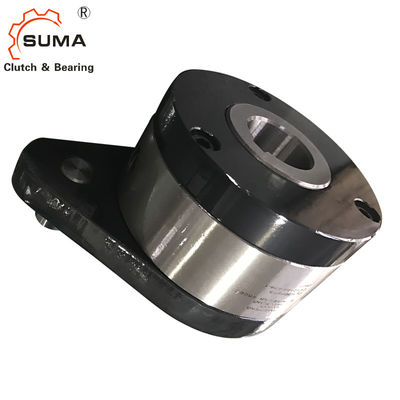

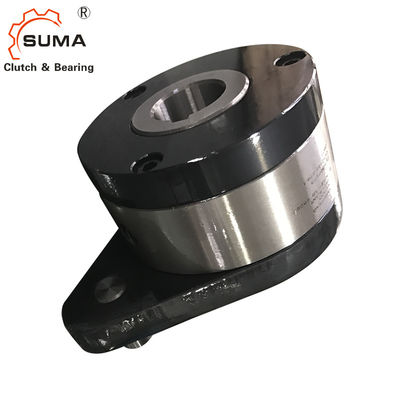

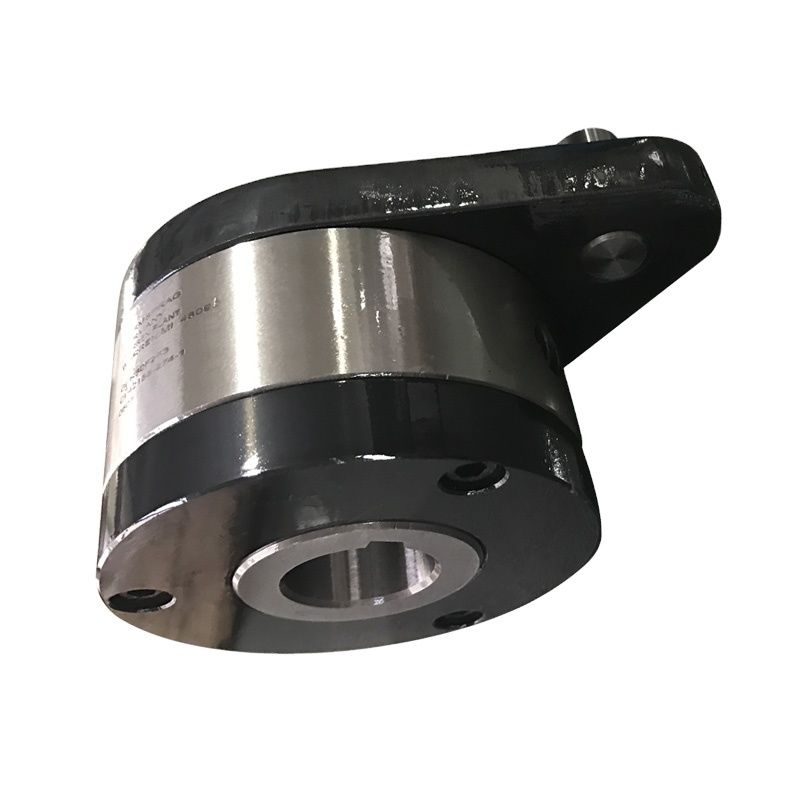

Types GFR..F2F3/F3F4 are roller type freewheels, self-contained, sealed and bearing supported, using two 160 series bearings. They use the GFR base module.
1) T max = 2 × T KN
2) Inner race overruns
Keyway to DIN 6885.1 standard
When ordering assembled, specify rotation direction from arrow "A": "R" for clockwise, "L" for counter-clockwise
Specialized manufacturer of cam clutches, one way bearings, backstop clutches, and overrunning clutches with high technology.
A: We maintain strict quality control with our own bearing factory, offering competitive pricing for one way clutch bearings.
A: Most bearings are in stock. Small quantities ship within 15 days.
A: We accept L/C, T/T, Western Union, and Paypal.
A: Yes, we can provide samples for quality verification.
Contact us for any additional requirements or questions about our GFR90 F2F3 F3F4 One Way Roller Bearings.
