| タイプ: | スプラグ | 精度定格: | P0 |
|---|---|---|---|
| 密封器の種類: | 密閉 | 材料: | GCR15 |
| 内径: | 30mm | 外径: | 62mm |
| 厚さ: | 16mm | トルク容量: | 138Nm |
| 重さ: | 0.21g | 動的負荷: | 11.7kn |
| 静的負荷: | 6.45kn | 最大速度: | 4200min-1 |
| 引力 トルク: | 4.4ncm | ベアリングシリーズ: | 6206 |
| スプラグタイプ: | FormChromed | ||
| ハイライト: | 30mm sprag clutch bearing,sealed one way bearing,CSK30 one way clutch bearing |
||
| Attribute | Value |
|---|---|
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining |
| Type | sprag, sprag type |
| Precision Rating | P0 |
| Seals Type | sealed |
| Material | Steel, GCr15 |
| Product name | csk sprag clutch bearing |
| Brand | SUMA |
| OEM | ACCEPT |
| Stock | rich |
| Package | wooden box, tube, pulley |
| Port | Shanghai;Ningbo |
| Delivery time | 7-10 days |

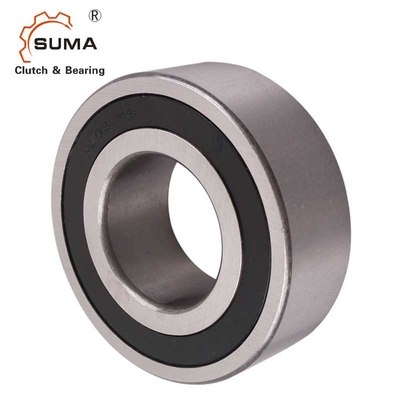

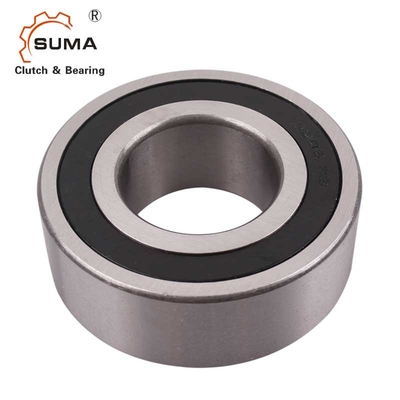

The CSK30 One Way Bearing is a sprag type freewheel integrated into a 62 series ball bearing (except size 8 and 40). This bearing comes supported, delivered grease lubricated and protected against dust particles larger than 0.3mm.
| Product name | CSK30 one way sprag bearing |
|---|---|
| Model | CSK30 |
| Material | GCr15 |
| Inner diameter | 30mm |
| Outer diameter | 62mm |
| Thickness | 16mm |
| Torque capacity | 138Nm |
| Weight | 0.21g |
| Package | Carton Box / Wooden box |
| Payment terms | TT. L/C, D/A,D/P,Western Union |
| Delivery time | 2-4 days for the sample, 7 days for big order |
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque |
|---|---|---|---|---|---|
| CSK(KK) | 30 | 6206 | 138 Nm | 0.21 kg | 4.4 Ncm |
Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) is a specialized manufacturer producing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and other bearings with high technology.
We follow "Best Quality, Best Price, Fast Delivery, Best Service" to satisfy all our customers.
Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet
Small items: In stock
Medium Items: 10-15 Days
Big items: 20-25 Days
