| タイプ: | スプラグ | 精度定格: | P0 |
|---|---|---|---|
| 密封器の種類: | 密閉 | 材料: | Gcr15鋼 |
| 厚さ: | 27mm | トルク容量: | 204nm |
| 重さ: | 0.2kg | 内径: | 35mm |
| 外径: | 55mm | ベアリングタイプ: | スプラグベアリング |
| 構造: | スプラグタイプ | 速度の過剰運転: | 4600 min-1（動的）、3200 min-1（静的） |
| 動的負荷: | 8200n（ローラー）、8500n（ボール） | 静的負荷: | 5200N（ローラー）、5700N（ボール） |
| ベアリングシリーズ: | 5907 | ||
| ハイライト: | 35mm sprag clutch bearing,one way clutch bearing 55mm OD,high torque clutch bearing 204Nm |
||
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works, Energy & Mining |
| Type | Sprag |
| Precision Rating | P0 |
| Seals Type | Sealed |
| Material | Steel |
| Product Name | Sprag Type Clutch |
| Thickness | 27MM |
| Torque Capacity | 204Nm |
| Weight | 0.2 Kg |
| Delivery Time | 1-2 Days |
| Package | Carton Box |
| Bearing Type | Sprag Bearing |
| Structure | Sprag Type |

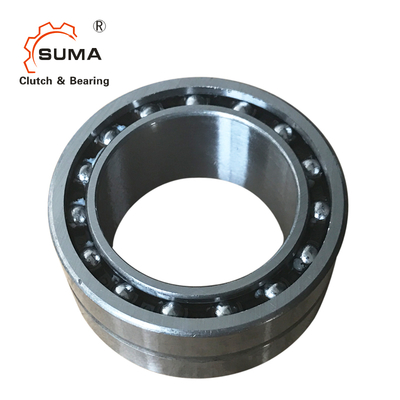

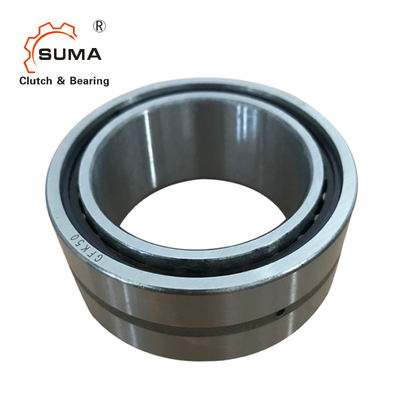

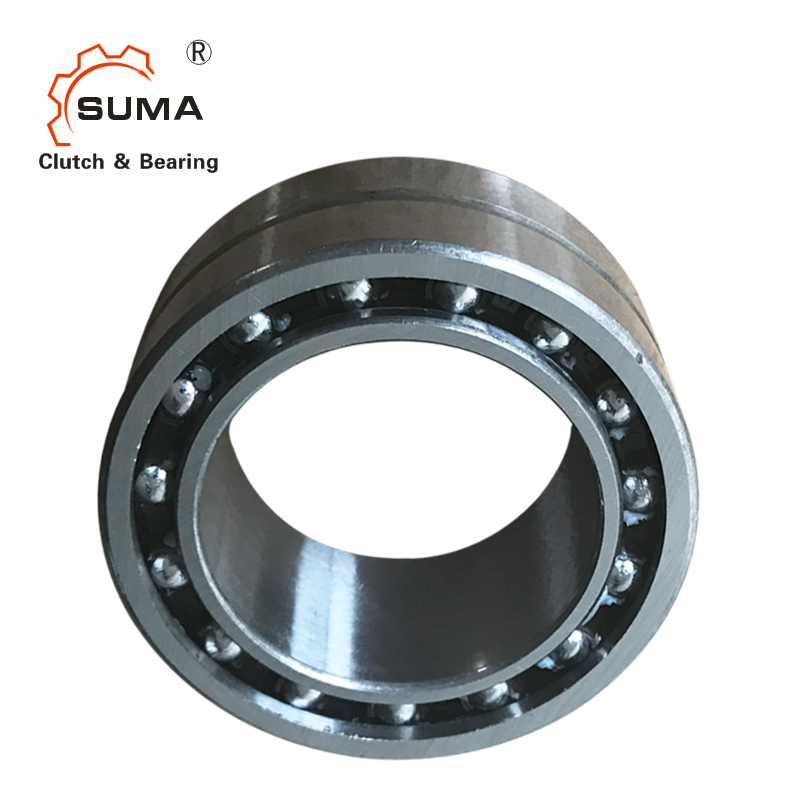

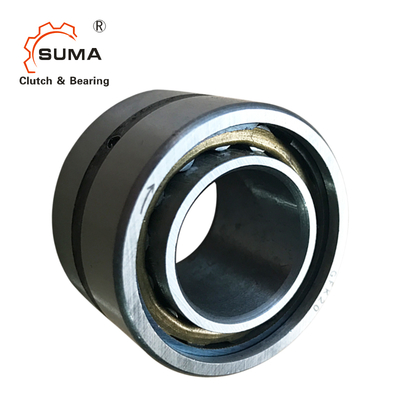

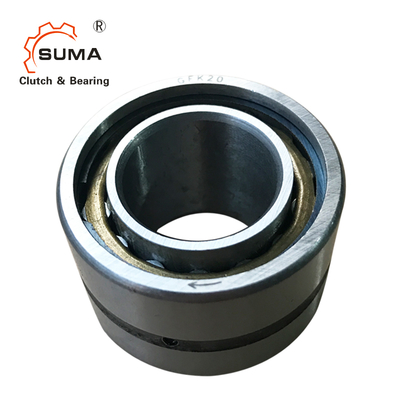

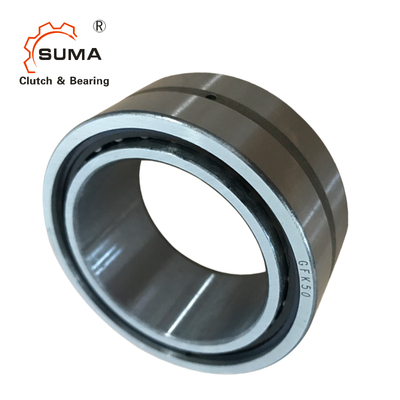

The GFK35 Sprag Type Clutch is a sprag freewheel integrated into a 59 series ball bearing, designed to provide high torque capacity for minimal outside diameter.
Torque transmission must be ensured by a press fits assembly into a rigid outer housing with R6 tolerance, and onto a shaft with P5 tolerance.
| Type | Size (mm) | TKN1 (Nm) | n imax2 (min-1) | n amax3 (min-1) | Bearing Series | C (N) | C0 (N) | D (mm) | L (mm) | r (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GFK | 20 | 51 | 5500 | 4000 | 5904 | 5600 | 2900 | 37 | 23 | 0.5 | 0.09 |
| GFK | 25 | 65 | 5300 | 3800 | 5905 | 6300 | 3450 | 42 | 23 | 0.5 | 0.11 |
| GFK | 30 | 95 | 5000 | 3500 | 5906 | 7700 | 4600 | 47 | 23 | 0.5 | 0.13 |
| GFK | 35 | 204 | 4600 | 3200 | 5907 | 8200 | 5200 | 55 | 27 | 1 | 0.2 |
| GFK | 40 | 315 | 4200 | 3000 | 5908 | 8650 | 5750 | 62 | 30 | 1 | 0.3 |
| GFK | 45 | 370 | 3800 | 2500 | 5909 | 9200 | 6350 | 68 | 30 | 1 | 0.34 |
| GFK | 50 | 460 | 3400 | 2200 | 5910 | 9650 | 6950 | 72 | 30 | 1 | 0.36 |
