Name: B200 Series One Way Clutch Sprag Bearing Freewheel GCr15
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: B200
Price: 20.00 USD
Availability: InStock

ホーム製品 1つの方法クラッチ軸受け

B200 Series One Way Clutch Sprag Bearing Freewheel GCr15

商品の詳細:

起源の場所:	江蘇、中国
ブランド名:	SUMA
モデル番号:	B200

お支払配送条件:

最小注文数量:	1
価格:	$10-30

連絡先

詳細製品概要

ボアサイズ:	16.51-79.356 mm	精度定格:	P0 P6 P5 P4 P2
行数:	単一行	材料:	GCR15
外径:	40-125 mm	内径:	16.51-79.356 mm
幅:	25-42のmm	重さ:	0.23-2.4 kg
マックス。インデックス付け:	150サイクル/分	キーウェイ:	4x2.5-12x4.5
引力トルク:	0.1-0.39 nm	トルク容量:	39.2-1390 nm
マックス。オーバーランニング:	1200-2400 r/min	シャフトDia。:	16.510-79.356 mm
密封器の種類:	密閉
ハイライト:	GCr15 sprag clutch bearing , B200 series freewheel bearing , one way clutch bearing with warranty

Wholesale One Way Clutch (B200) Sprag Bearing Freewheel

Product Specifications

Attribute	Value
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining
Bore Size	16.51 - 79.356 mm
Precision Rating	P0 P6 P5 P4 P2
Number of Row	Single row
Material	Gcr15
Outer diameter	40-125 mm
Inner diameter	16.51-79.356 mm
Width	25-42 mm
Weight	0.23-2.4 kg
Package	Single Box
Application	Machinery
Service	OEM Service
Port	Shanghai
Type	Needle
Seals Type	Sealed

Product Features

Type B200 is a non-bearing supported sprag type freewheel
The sprags run directly on the shaft provided by the user
Bearings are required to support axial and radial loads

Technical Specifications

Item	B200 Series
Material	GCr15
Max. Indexing	150 cycle/min
Key Way	4X2.5 - 12X4.5
Outer Diameter	40 - 125 mm
Weight	0.23-2.40 kg
Drag Torque	0.1 - 0.39 Nm
Application	Elevator, Industrial Machines

Available Models

Model	Torque Capacity (N.m)	Drag Torque (N.m)	Max. Overrunning (r/min)	Max. Indexing (cycle/min)	A(+0 to -0.6)	B	Keyway	With JIS Bearing No.	Shaft Dia. C(+0 to -0.025)	Weight (kg)
B203	39.2	0.10	2400	500	150	25.0	4X2.5	6203	16.510	0.23
B204	58.8	0.10	2400	500	150	25.0	5X3	6204	18.796	0.34
B205	98	0.20	1800	400	150	25.0	5X3	6205	23.622	0.45
B206	235	0.20	1800	350	150	28.0	7X4	6206	32.766	0.68
B207	372	0.20	1800	300	150	28.0	7X4	6207	42.088	0.80
B208	549	0.20	1800	200	150	32.0	10X4.5	6208	46.761	0.91
B209	549	0.20	1800	200	150	32.0	10X4.5	6209	46.761	0.95
B210	784	0.29	1200	200	150	32.0	10X4.5	6210	56.109	1.00
B211	784	0.29	1200	200	150	32.0	10X4.5	6211	56.109	1.40
B212	1230	0.29	1200	180	150	42.0	10X4.5	6212	70.029	1.80
B213	1230	0.29	1200	180	150	42.0	10X4.5	6213	70.029	2.30
B214	1390	0.39	180	180	150	42.0	12X4.5	6214	79.356	2.4

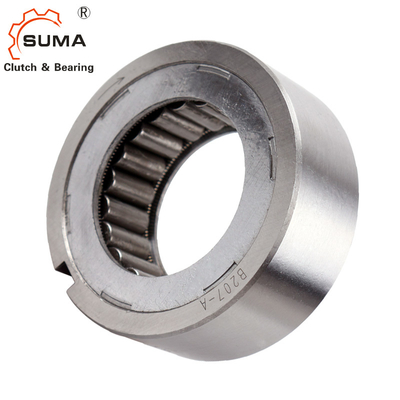

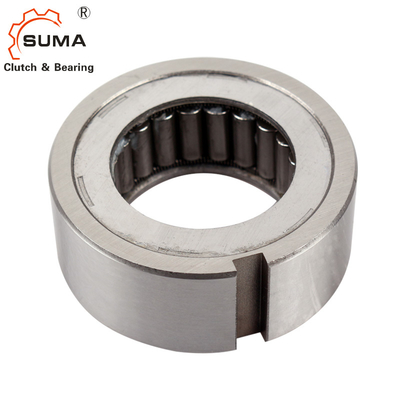

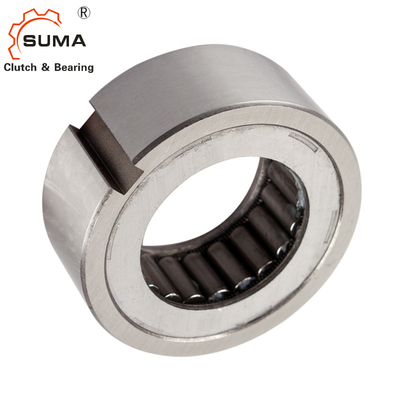

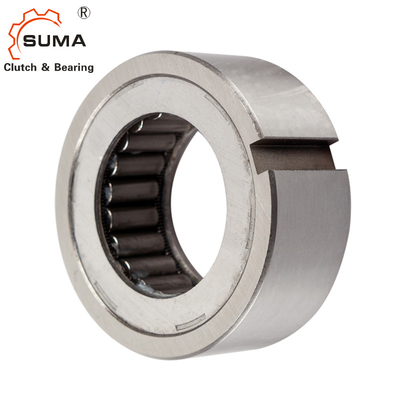

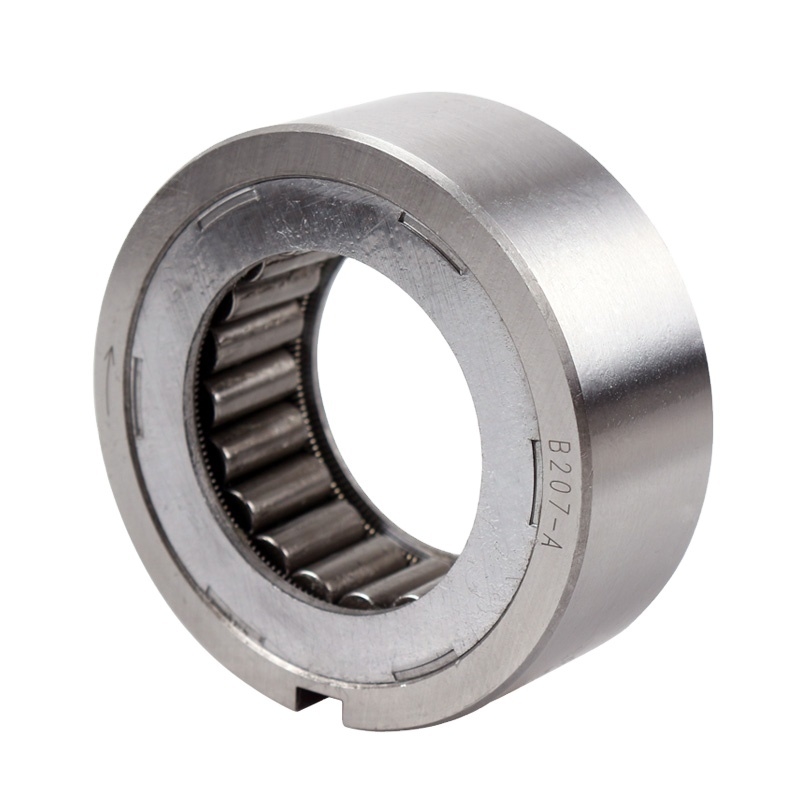

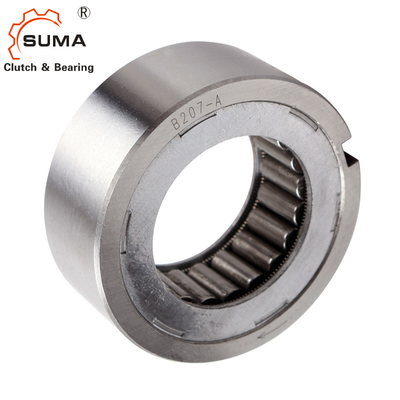

Product Images

Certifications

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) is a manufacturer specialized in producing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and other bearings with high technology.

We follow "Best Quality, Best Price, Fast Delivery, Best Service" to satisfy all our customers.
