| タイプ: | LDシリーズ | 精度定格: | P0、P6 |
|---|---|---|---|
| 密封器の種類: | シール | 厚さ: | 24mm |
| 重さ: | 0.55kg | トルク容量: | 29.4nm |
| 引力 トルク: | 0.39Nm | 最大オーバーランニング速度: | 200r/min |
| 最大インデックス速度: | 100サイクル/分 | 最大放射負荷: | 70kgf |
| ボアサイズ: | 25mm | 内部レースの直径: | 19.5mm |
| アウターレースキーウェイ: | 7x4 | キーウェイサイズ: | 7x3 |
| 外側のレースの直径: | 72mm | ||
| ハイライト: | 24mm one way clutch bearing,one way clutch bearing 29.4Nm torque,LD07 one way clutch bearing |
||
| Attribute | Value |
|---|---|
| Applicable Industries | Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works, Energy & Mining, Food & Beverage Shops, Other |
| Type | LD Series |
| Precision Rating | P0, P6 |
| Seals Type | seales |
| Thickness | 24mm |
| Weight | 0.55kg |
| Torque Capacity | 29.4Nm |
| OEM | Accept |
| Stock | Rich |
| Delivery | in stocks |
| Package | single box or as your requiements |
| Port | Shanghai ; Ningbo |
| Market | global |

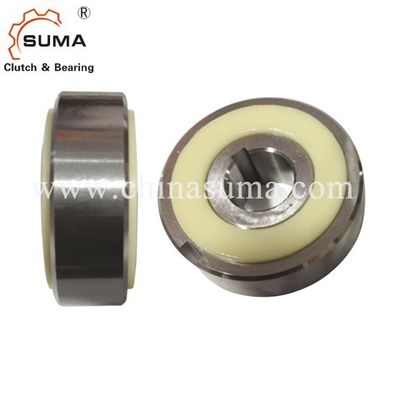

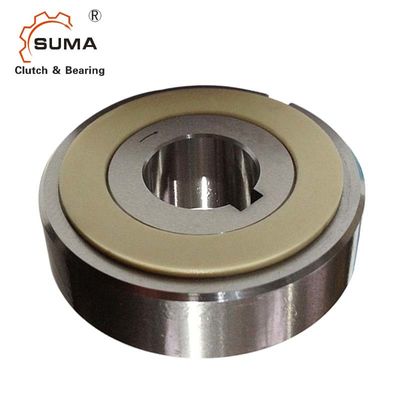

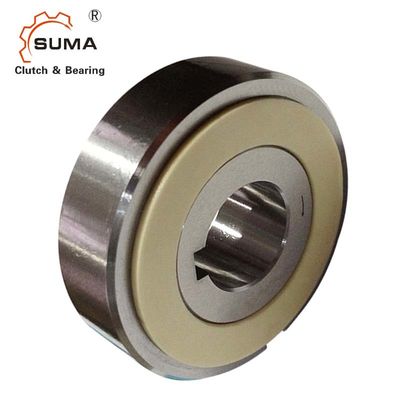

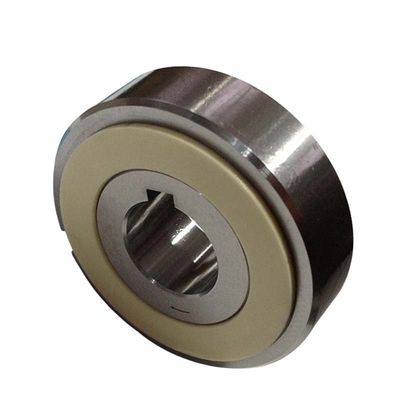

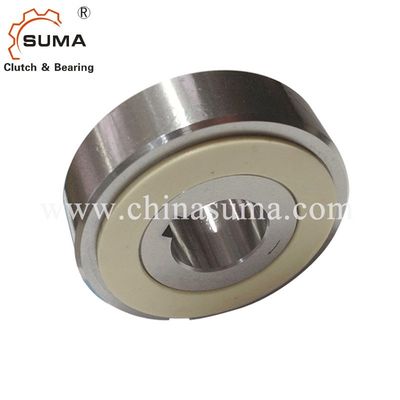

The LD Series Free Wheel One-way Clutch Bearing LD07 is prelubricated with special grease and ready for immediate use. This high-performance clutch bearing is part of our LD04-LD08 product line.
| Model | Torque Capacity (N@m) | Drag Torque (N@m) | Max. Overrunning (r/min) | Max. indexing (cycle/min) | Max.Radial Load When Overrunning (kgf) | Bore Size | A | B | C | D | E | Outer Race Keyway | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LD04 | 5.88 | 0.2 | 300 | 100 | 20 | 10 | 4x1.5 | 19.5 | 23.9 | 24 | 47 -0.014 -0.039 | 40 | 5x3 | 0.25 |
| LD05 | 9.8 | 0.29 | 300 | 100 | 30 | 14 | 5x2 | 19.5 | 23.9 | 24 | 52 -0.017 -0.042 | 45 | 5x3 | 0.3 |
| LD06 | 19.6 | 0.29 | 200 | 100 | 50 | 20 | 5x2 | 19.5 | 23.9 | 24 | 62 -0.017 -0.042 | 52 | 7x4 | 0.4 |
| LD07 | 29.4 | 0.39 | 200 | 100 | 70 | 25 | 7x3 | 19.5 | 23.9 | 24 | 72 -0.017 -0.042 | 62 | 7x4 | 0.55 |
| LD08 | 49 | 0.49 | 200 | 100 | 80 | 30 | 7x3 | 19.5 | 23.9 | 24 | 82 -0.017 -0.042 | 70 | 10x4.5 | 0.65 |
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in producing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and needle roller bearings with high technology.
