| 起源の場所: | 中国 |
| ブランド名: | SUMA |
| 証明: | ISO SGS |
| モデル番号: | 4.061 |
| 最小注文数量: | 1 |
|---|---|
| 価格: | USD20-USD23 PER PIECE |
| パッケージの詳細: | カートンボックス |
| 受渡し時間: | 2～5日 |
| 支払条件: | L/C,D/A,D/P,T/T,ウェスタンユニオン,Paypal |
| 供給の能力: | 1か月あたり100000個 |
| 製品名: | 組合せころ軸受 | 材料: | ベアリングスチールGCR15 |
|---|---|---|---|
| サイズ: | 50×90×32mm | ディン。耐荷重: | 10000 |
| 駅耐荷重: | 161000 | パッケージ: | ロール パック+カートン箱 |
| 保証: | 6ヶ月 | OEM: | 受け入れる |

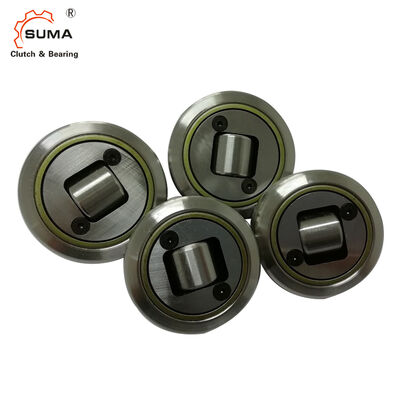

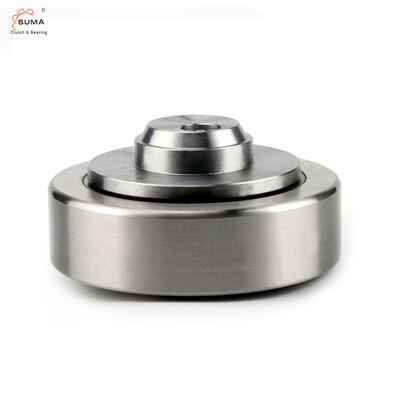

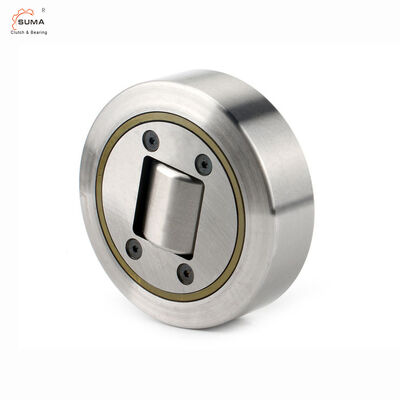

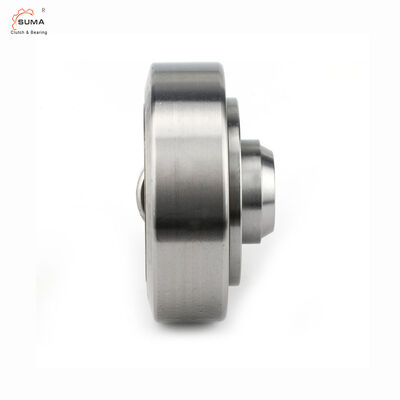

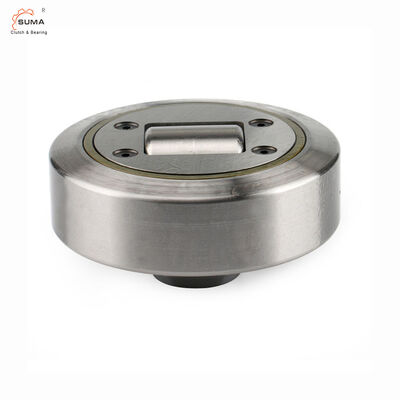

4.061 Combination roller bearing Combined Bearings
Description of Combined Roller Bearing for Forklift
The Combined Roller Bearing is composed of two main rollers, a side roller and a shaft head, which are installed in two different directions to reduce space and reduce manufacturing costs. The radial and axial direction bearing capacity is relatively large, and the accessories are highly replaceable. The adjustable combined roller bearing can adjust the position of the mandrel by adjusting the eccentric outer hexagon or the eccentric valve to achieve the purpose of adjusting the axial dimension of the side roller.
Composite roller bearings are mainly used in: forklifts, stackers, metallurgical industry, container front forks, cranes and other large lifting equipment and material lifting equipment.
Catalogue of Combined Roller Bearings for Forklift
| Model No. |
D mm. |
T mm. |
d -0.05 mm. | H mm. | h mm. | B mm. | A mm. | S mm. | r mm. | C KN | COKN | COAKN |
r/pm max. |
Weight kg |
| 4.053 | 52,5 | 40 | 30 | 33,0 | 27,0 | 17 | 5,0 | 15 | 2 | 24,0 | 32,0 | 7 | 800 | 0,46 |
| 4.054 | 62,5 | 42 | 30 | 37,5 | 30,5 | 20 | 2,5 | 20 | 3 | 31,0 | 35,5 | 11 | 900 | 0,53 |
| 4.055 | 70,1 | 48 | 35 | 44,0 | 36,0 | 23 | 2,5 | 22 | 4 | 45,5 | 51,0 | 14 | 900 | 0,80 |
| 4.056 | 77,7 | 54 | 40 | 48,0 | 36,5 | 23 | 3,0 | 26 | 4 | 48,0 | 56,8 | 18 | 800 | 1,00 |
| 4.057 | 77,7 | 53 | 40 | 40,0 | 29,0 | 23 | 3,0 | 26 | 4 | 48,0 | 56,8 | 18 | 800 | 0,87 |
| 4.058 | 88,4 | 59 | 45 | 57,0 | 44,0 | 30 | 3,5 | 26 | 3 | 68,0 | 72,0 | 23 | 750 | 1,62 |
| 4.059 | 101,2 | 67 | 50 | 46,0 | 33,0 | 28 | 3,0 | 30 | 3 | 73,0 | 82,0 | 27 | 700 | 1,74 |
| 4.06 | 107,7 | 71 | 55 | 54,0 | 39,0 | 31 | 3,0 | 34 | 5 | 81,0 | 95,0 | 36 | 650 | 2,27 |
| 4.061 | 107,7 | 71 | 60 | 69,0 | 55,0 | 31 | 4,0 | 34 | 5 | 81,0 | 95,0 | 36 | 650 | 2,82 |
| 4.062 | 123,0 | 80 | 60 | 72,3 | 56,0 | 37 | 5,0 | 40 | 5 | 110,0 | 132,0 | 50 | 550 | 3,89 |
| 4.063 | 149,0 | 103 | 60 | 78,5 | 58,5 | 43 | 5,5 | 50 | 3 | 151,0 | 192,0 | 71 | 450 | 6,52 |
Pictures
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack the goods?
Each in small white box or Roll Pack or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / Wooden pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
